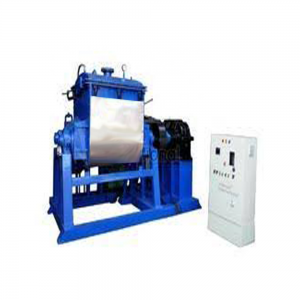

Heavy duty Sigma Mixer/Sigma Kneader/Z Blade Mixer
Technical Description：
All the Sigma Kneader / Mixer& Z Blade Kneader / Z Blade Mixer we make are heavy duty structure.
The machines are widely used for mixing in the fields of: chemical, rubber, plastic,silicon, gum,tooth paste,dough,hot melt adhesive,soap,paint, printing ink, carbon, food stuff, medicine ,BMC CMC,ceramic paste,starch,etc, Mixing room and agitating blades are all made by stainless steel, the jacket of mixing room can be designed for electric oil heating,steam heating or water cooling. Discharge ways include hydraulic tilt, screw extruder and bottom valve discharge etc.
Sigma Mixer Kneader Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 kgs. up to 5000 kgs.
Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc.
Heavy Duty Sigma Mixer Machine is having usage in mixing sticky paste, hard silicon, heavy plastic masses, rubber etc.
Salient Features
- Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
- Stainless Steel polish to matt & mirror finish as per customer’s requirements.
- Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
- Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
- Jacket for heating or cooling application can be offered.
- Mineral wool insulation with cladding on jacket.
- Tangential designed ‘Z’ blades offered for uniform mixing.
- PTFE made shaft sealing provided for food grade compatibility.
- Minimum gap between trough inner shell & blades remove possibility of sticking product.
- On demand Spray system, vacuum system
Optional Features/Accessories
- Liquid Spray System
- Vacuum System
- Blades Cooling Arrangement
- Screw System
- Automatic Valve Discharge System
Technical Specification Heavy duty sigma mixer
| Models | Working Capacity | Gross Capacity | Main Motor | Extruder Motor |
| SME – 50 | 50 Liters | 80 Liters | 7.5 H.P. | 1.5 H.P. |
| SME – 75 | 75 Liters | 110 Liters | 10 H.P. | 2 H.P. |
| SME – 100 | 100 Liters | 150 Liters | 15 H.P. | 2 H.P. |
| SME – 150 | 150 Liters | 200 Liters | 20 H.P. | 3 H.P. |
| SME – 200 | 200 Liters | 300 Liters | 25 H.P. | 3 H.P. |
| SME – 400 | 400 Liters | 550 Liters | 40 H.P. | 5 H.P. |
| SME – 500 | 500 Liters | 750 Liters | 50 H.P. | 5 H.P. |
| SME – 750 | 750 Liters | 1150 Liters | 60 H.P. | 5 H.P. |
| SME – 1000 | 1000 Liters | 1500 Liters | 70 H.P. | 7.5 H.P. |
| SME – 1500 | 1500 Liters | 2100 Liters | 80 H.P. | 7.5 H.P. |
| SME – 2000 | 2000 Liters | 2600 Liters | 90 H.P. | 10 H.P. |
| SME – 3000 | 3000 Liters | 3800 Liters | 120 H.P. | 10 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
