SIGMA MIXER EXTRUDER/ MIXTRUDER
SIGMA MIXER EXTRUDER – CAPACITY TABLE
Model No. Working Capacity (Liter) SHELL SIZE Total Capacity (Liter) MAIN GEAR BOX Mixer (HP) Extruder (HP)
ABFSME – 50 30 – 50 16” X 16” 75 4” 1.0 – 1.5 5 – 7.5
ABFSME – 75 50 – 75 20” X 20” 110 6” 15 – 20 5 – 7.5
ABFSME – 150 75 – 150 24” X 24” 200 8” 30 – 40 10 – 15
ABFSME – 300 150 – 300 36” X 36” 400 10” 40 – 50 10 – 15
**Note – The actual power consumption shall depend upon the application and the properties of the material to be mixed (Density, Viscosity etc.) ** Note – As improvements in design are being made continuously, the above specifications should be considered for reference only. The equipment built may differ due to our policy of continues product development. [button style=”enigma_btn_blue” size=”enigma_btn_small” btn_disable=”0″ url=”http://sigmamixer.in/contact-us” ]Send Enquiry[/button]
sigma mixer extruder

Sigma Mixer Extruder

A sigma mixer extruder is a heavy-duty industrial machine that combines high-viscosity mixing, kneading, and screw-based discharge. It uses counter-rotating Z-shaped blades inside a W-shaped trough alongside a bottom extrusion screw to process thick materials like dough, putty, rubber, and adhesives

SEND INQUIRY

Description:

Sigma Mixer Extruder equipment is combination of mixing, kneading and extruding in one bowl. Extruder is uses for processing highly viscous material which cannot discharge by tilting of bowl. Extruder Machine is having special purpose stainless steel or mild steel worm mounted on bottom of the bowl. This worm is having screw system underneath it which rotates in clockwise direction. During its rotation worm feed out finished product from the bowl. There is option of mounting specific shape & size die at discharge of screw system in order to have finished product in particular shape & size.

Excellent for kneading and mixing of highly viscous materials like dough, putty, rubber solutions, adhesives, polymers etc. The mixing action is a combination of smearing, stretching, folding, dividing and recombining as the material is processed between the sigma blades and the container walls. Jacket arrangement is provided for heating or cooling application. In bigger models the container is tilted by a hydraulic cylinder to ensure complete discharge of mass.




How It Works

  • Mixing Phase: Twin Z-blades rotate toward each other while the bottom screw typically turns in reverse to continuously feed material back into the mixing zone.
  • Extrusion Phase: Once blending finishes, the screw rotation reverses direction to push the processed compound forward through a discharge die or shaping nozzle.

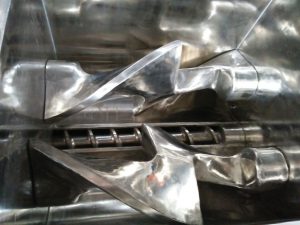

Sigma mixer with extruder, sigma extruder, mixtruder

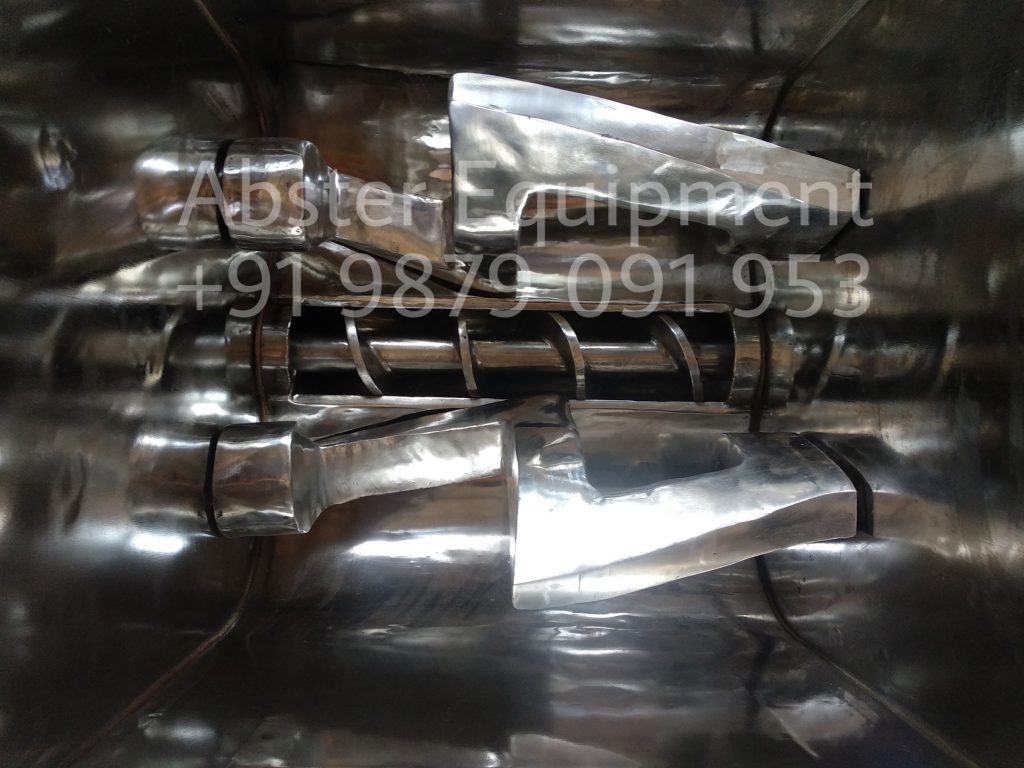

Sigma Blade Mixer

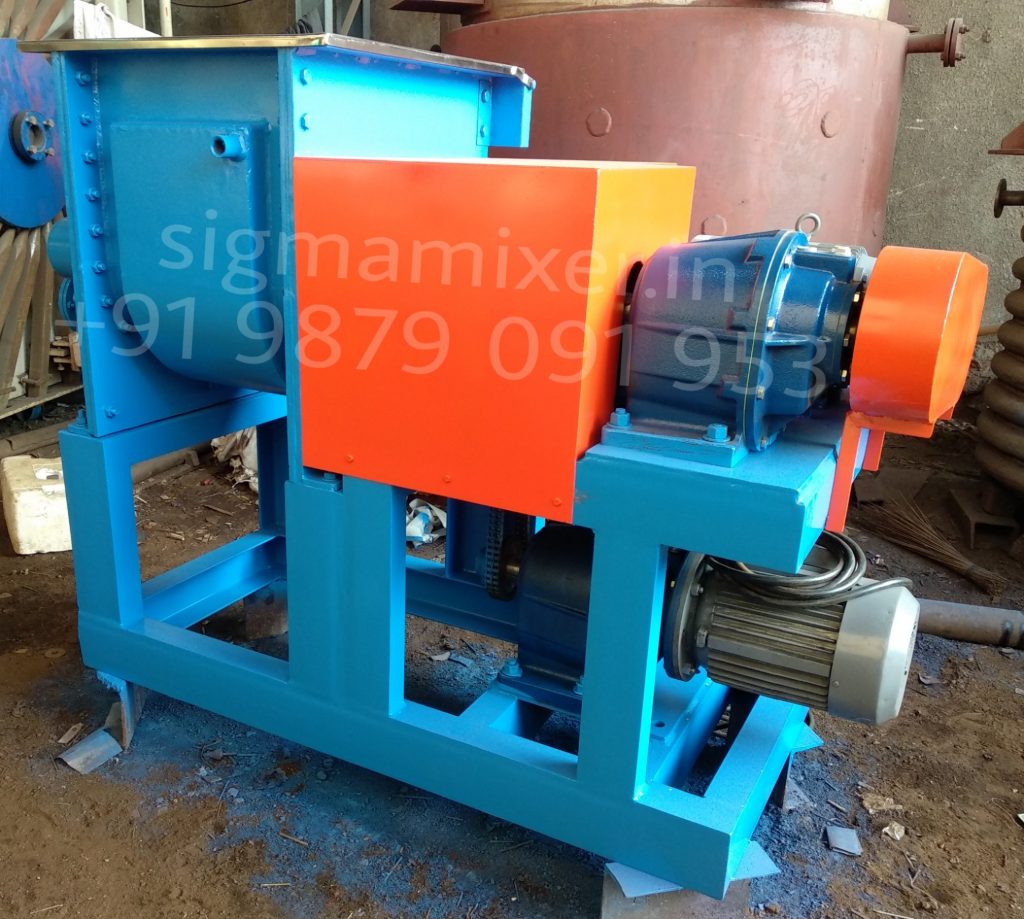

Sigma Mixer Extruder

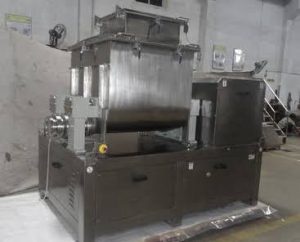

Sigma Mixer Extruder machine



Sigma Mixer Specification

MODEL TOTAL VOLUMETRIC CAP. IN LTRS. HP HYDRAULIC TILTING HP
ABFSM 6 6 1.5 N.A
ABFSM 25 25 3 N.A
ABFSM 50 60 5 N.A
ABFSM 125 125 10 N.A
ABFSM 225 225 20 1.5
ABFSM 500 500 30 2
ABFSM 1000 1000 60 3
ABFSM 1500 1500 75 3
ABFSM 3000 3000 300 7.5
Note : Working capacity to be calculated @ 60% of Total Capacity. The Sigma Mixer Extruder combines the efficiency of a double arm – sigma blade mixer with the convenience of an extrusion screw for the mixing and discharging of heavy viscous materials. Such as Adhesives, Explosives, Mastics, Sealing compounds, Biscuit dough’s, Fiberglass resin dough’s, Metal powders, Silicone rubber, Butyl rubber, Food and confectionery products, Molding preparations, Soaps and detergents, Carbon pastes, Gaskets and Gland Packing’s, Pencil erasers, Solid propellants, Ceramics Grinding wheel preparations, Pharmaceuticals, Sugar pastes, Chemicals, Hot-Melts, Plastics, Viscous rubber solutions, Chewing gum, Inks and pigment products, Putties, Crayon and pencil lead, Marzipan, Refractories.
The Sigma Mixer Extruder includes a set of counter-rotating kneading blades and a discharge screw. The blades are mounted on a horizontal axis in a u-shaped trough. Below the blades in a separate cavity is the discharge screw. During the mixing cycle the blades rotate toward each other while the mixing screw rotates in a reverse direction, constantly feeding new materials into the mixing blades. After the mixing/kneading cycle is complete, the screw is reversed and it transports the mixed materials from the mix zone out through a discharge die and on to further processing or packaging. The Sigma Kneader Extruder has several advantages over conventional non-screw discharge kneaders:
  • Low mixing time approx. 15% less time.
  • Eliminates the manual task of scraping out sticky/tacky materials.
  • Eliminates operator exposure to materials of elevated temperatures or of a toxic nature, thereby improving plant safety.
Many Different sizes and designs are available to meet the most stringent process needs. Sigma Kneader Extruders are manufactured in many sizes from 5 through 2500 Liters capacity. Other sizes manufactured on request.
Standard Features
  • Available in all grades of Carbon Steel and Stainless Steel.
  • Available with single and twin screw designs.
  • Optional wear resistant liner plates provided for abrasive products.
  • Optional wear resistant liner plates provided for abrasive products.
  • Jacketed construction available for heating and cooling applications.
  • Can be offered for vacuum application.
  • Available in working capacities of 5 Liters to 2500 Liters. Other sizes manufactured on request.
Advantages over conventional tilting bottom discharge kneaders :
  • Low mixing time.
  • Continuous operation possible because of extrusion screw.
  • Elimination of the manual scraping of sticky/tacky materials.
  • Eliminates operator exposure to materials at elevated temperatures or those of a toxic nature, thereby improving plant safety.
