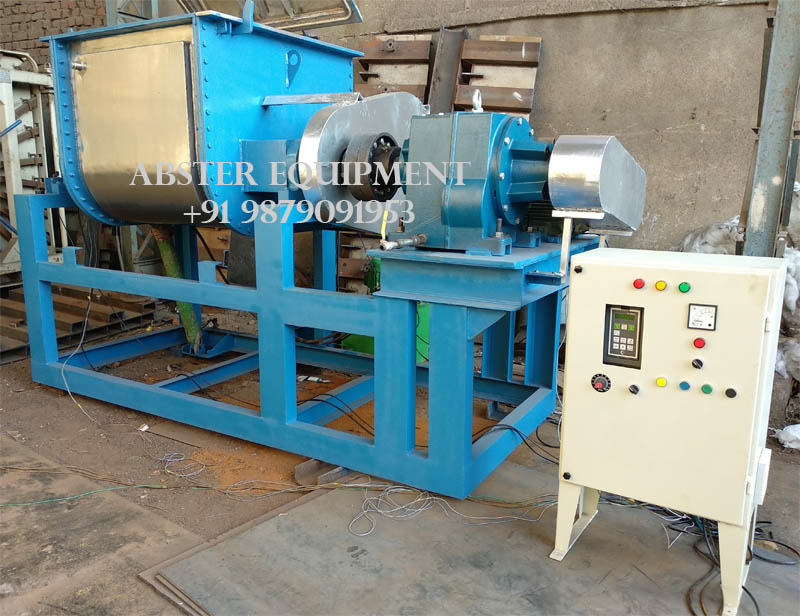

Polyester Putty Mixer Hydraulic Tilting Dual Z Blades Mixer
sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to
be used for mixing and kneading of low-to high-viscosity products in many industries such as
BMC/DMC, Chewing gum, candy/sugar paste, plasticize/silly putty, Hot melt adhesive , silicon compound, CMC/Cellulose, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic etc.
Sigma Mixer Machine structure:
Including kneading/mixing system, machine base, hydraulic system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional)
—- Discharge: Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
(for hot melt adhesive producing, normally use screw extruding or bottom valve )
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
(for hot melt adhesive producing, normally use screw extruding or bottom valve )
—- Heating: electric heating, hot water heating, hot oil heating, steam heating
(for hot melt adhesive producing, normally use electric heating or hot oil heating, and sides plate also with heating jacket. )— Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
(for hot melt adhesive producing, cooling is not required)
(for hot melt adhesive producing, normally use electric heating or hot oil heating, and sides plate also with heating jacket. )— Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
(for hot melt adhesive producing, cooling is not required)
—- Vacuum system: water-ring vacuum pump and buffer tank.
(for hot melt adhesive producing, better with vacuum function. )
(for hot melt adhesive producing, better with vacuum function. )
Sigma Mixer Capacity table:
| Model(L) | ABFSM5 | ABFSM-10 | ABFSM-50 | ABFSM-100 | ABFSM-200 | ABFSM-300 | ABFSM-500 | ABFSM-1000 | ABFSM-1500 | ||||||||||||
| volume(L) | 5 | 10 | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | ||||||||||||
| Steam pressure(Mpa) | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | ||||||||||||
| Hot oil circulation(Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||||||||
| Electric heating(Kw) | 1.5 | 2 | 3-6 | 4-11 | 6-15 | 6-18 | 12-24 | 18-36 | 32-45 | ||||||||||||
| Fast Rpm | 60 | 45 | 35 | 36 | 36 | 40 | 30 | 35 | 40 | ||||||||||||
| Slow rpm | Speed ratio 1.0-1.9 as option, according to materials features. | ||||||||||||||||||||
| Main motor (Kw) | 0.75-2.2 | 1.5-3 | 3-5.5 | 4-11 | 5.5-15 | 5.5-18 | 11-45 | 18.5-75 | 22-90 | 45-160 | |||||||||||
| Vacuum | ≤-0.094Mpa | ||||||||||||||||||||
| Discharge | 1.manual (for small capacity) 2.bottom ball valve 3.electric tilting 4.screw extruding | ||||||||||||||||||||
any interest, welcome to send your inquires!
mobile: +91 9879091953
