Heavy Duty Sigma Mixer
Heavy Duty Sigma Mixer uses for mixing moderate & high viscosity products having viscosity more than 3000 cP like grease, rubber, silicon, bubble gum, putty etc.
- Heavy Duty
- Custom Design
- Heating and Cooling Option
- Range of Specification
- High Capacity output
- World Class Mixer
Technical Description：
All the Sigma Kneader / Mixer& Z Blade Kneader / Z Blade Mixer we make are heavy duty structure.
The machines are widely used for mixing in the fields of: chemical, rubber, plastic, silicon, gum, tooth paste,dough,hot melt adhesive,soap,paint, printing ink, carbon, food stuff, medicine ,BMC CMC,ceramic paste,starch,etc, Mixing room and agitating blades are all made by stainless steel, the jacket of mixing room can be designed for electric oil heating,steam heating or water cooling. Discharge ways include hydraulic tilt, screw extruder and bottom valve discharge etc.

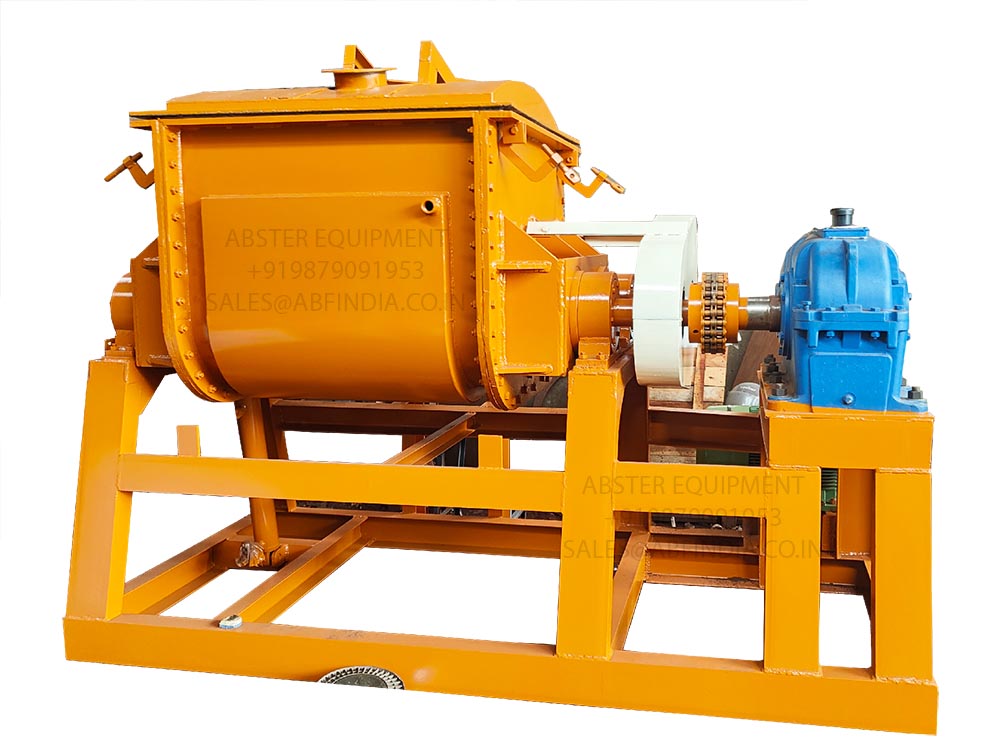

Sigma Mixer Kneader Machine is uses for uniform mixing of semi solid materials. Machine consist of U trough bowl with two ‘Z’ shape blades each rotates in opposite direction for proper mixing of material. Machine equipped with suitable capacity motor & gearbox decided as per characteristics of the product & process. Equipment is provided with Jacket arrangement for heating or cooling applications. We manufacture Sigma Mixer Kneader in capacity ranging from 5 kgs. up to 5000 kgs.
Sigma Mixer Kneader is widely uses for mixing polyester putty, rubber solution, biscuit dough, sauce, polymers etc.
Heavy Duty Sigma Mixer Machine is having usage in mixing sticky paste, hard silicon, heavy plastic masses, rubber etc.
Sigma Mixer Working Principle
Kneader Mixer, also called Sigma Mixer, is an industrial machine used for mixing, kneading, and blending materials, especially high-viscosity and highly cohesive substances. The working principle of a kneader mixer involves a unique design that ensures thorough and efficient mixing.
Operation of Sigma Blade Mixer
In operation, material is loaded through the top of the container to typically 40 to 65 percent of the mixer’s total volumetric capacity. The rotation of the blades is through heavy duty drive systems typically consisting of a motor, gearbox, couplings, and gears. The tip speed of the sigma mixer is generally limited to 60 metres per minute. Mixing may be carried out at ambient temperature or under controlled temperature conditions. The mixer troughs can be provided with jackets for circulation of hot or cold media to maintain the required temperature conditions within the mixer. The discharge of the material from the mixer container is either by tilting of the mixer container, bottom discharge valve (see figure 5), or through an extruder / screw located in the lower portion between the two trough compartments. The mixer may be equipped with any one of these discharge arrangements. The tilting discharge arrangement is most common. The tilting arrangement of the container may be designed for manual operation or may be mechanized using motorized or hydraulic arrangement.
Salient Features
- Available in Stainless Steel 316, Stainless Steel 304 and Mild Steel materials.
- Stainless Steel polish to matt & mirror finish as per customer’s requirements.
- Mild Steel finish with one coat of red oxide and two coats of epoxy paint.
- Discharge option of hand wheel operated (manual) or hydraulic operated (automatic) offered.
- Jacket for heating or cooling application can be offered.
- Mineral wool insulation with cladding on jacket.
- Tangential designed ‘Z’ blades offered for uniform mixing.
- PTFE made shaft sealing provided for food grade compatibility.
- Minimum gap between trough inner shell & blades remove possibility of sticking product.
- On demand Spray system, vacuum system
Application of Sigma Mixer
Key Industry Applications
According to industry guides like Sigma Mixer Machine, sigma mixers are used across multiple sectors for thick pastes and heavy plastic masses:
Food & Confectionery: Processing biscuit doughs, chewing gum, bubble gum, chocolate, and sugar pastes.
Paint, Adhesives & Sealants: Kneading polyester putty, glass putty, industrial adhesives, and hot melt sealants.
Rubber & Polymers: Mixing rubber solutions, silicone rubber, butyl rubber, and polyester compounds.
Chemicals & Pharmaceuticals: Blending heavy pharmaceutical ointments, dry-to-wet powder phases, ceramic powders, and explosives.
FMCG & Others: Blending soap mass (soap production), crayons, and pencil lead.
Technical Specification Heavy duty sigma mixer
| Models | Working Capacity | Gross Capacity | Main Motor | Extruder Motor |
| SME – 50 | 50 Liters | 80 Liters | 7.5 H.P. | 1.5 H.P. |
| SME – 75 | 75 Liters | 110 Liters | 10 H.P. | 2 H.P. |
| SME – 100 | 100 Liters | 150 Liters | 15 H.P. | 2 H.P. |
| SME – 150 | 150 Liters | 200 Liters | 20 H.P. | 3 H.P. |
| SME – 200 | 200 Liters | 300 Liters | 25 H.P. | 3 H.P. |
| SME – 400 | 400 Liters | 550 Liters | 40 H.P. | 5 H.P. |
| SME – 500 | 500 Liters | 750 Liters | 50 H.P. | 5 H.P. |
| SME – 750 | 750 Liters | 1150 Liters | 60 H.P. | 5 H.P. |
| SME – 1000 | 1000 Liters | 1500 Liters | 70 H.P. | 7.5 H.P. |
| SME – 1500 | 1500 Liters | 2100 Liters | 80 H.P. | 7.5 H.P. |
| SME – 2000 | 2000 Liters | 2600 Liters | 90 H.P. | 10 H.P. |
| SME – 3000 | 3000 Liters | 3800 Liters | 120 H.P. | 10 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only.
