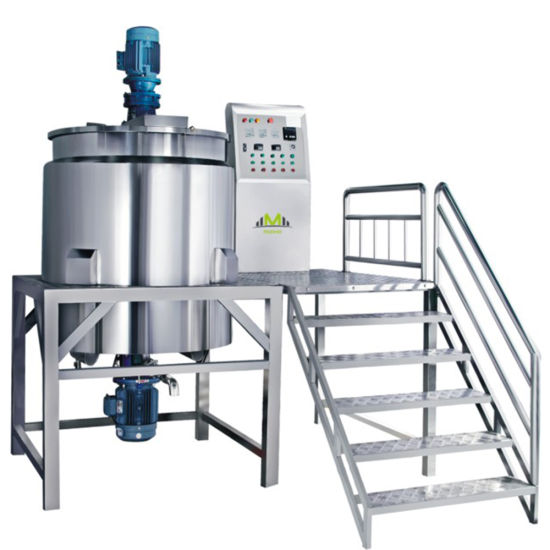

1000L Homogenizer Mixer Machinery Introduction

Homogenizers are commonly used to mix and stabilize emulsions and suspensions. An emulsion is a heterogeneous mixture comprising two or more immiscible liquids—such as oil and water—that resist mixing due to factors like interfacial surface tension, molecular polarity, and viscosity. Homogenization enables the even dispersion and reduction of droplet size, transforming typical emulsions into colloidal solutions with improved stability, texture, and shelf-life. Common examples include milk, mayonnaise, paints, and pharmaceutical creams. This process is fundamental to the food and dairy industries, where micro- and nano-emulsions are required to meet quality and safety standards.

Intank High Shear Homogenizer also commonly known as Batch Top Mounted High Shear Homogenizers are ideal for the Processes like Mixing, Homogenization, Suspensions, Emulsification, Dispersion and Disintegration of any Type of Solid/Powder into Liquid with consistent Product Quality and reduced Processing Time as compared to the Conventional Mixers. These Mixers satisfies all the requirements for 100 % Mixing/Homogenization of the Contents making it a Ideal Mixer for a Variety of Applications.

M.O.C : S.S. 304 / S.S. 316L / Other Material as per request.

Mounting : Tank Mounted/Floor Mounted/Platform Mounted

Suitable for Volumes upto 10,000 L Batch Size.

Optionals : Inverter/VFD for Variable Speed, Flameproof Motor, Control Panel with Suitable Starter – VFD or S/D.

1. 1000L Homogenizer Mixer machine for liquid soap mixing adopts single-direction or double direction scraping blending and frequency. conversion speed adjustment,
so as to satisfy product of different technological requirements.
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Vacuum pump can be equipped to carry out vacuum de-foaming (optional).
6. Bottom installation type dispersing head and emulsifying head are optional to speedup dissolution and emulsification of materials.
7. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc.

1000L Homogenizer Mixer TECHNICAL SPECIFICATIONS
